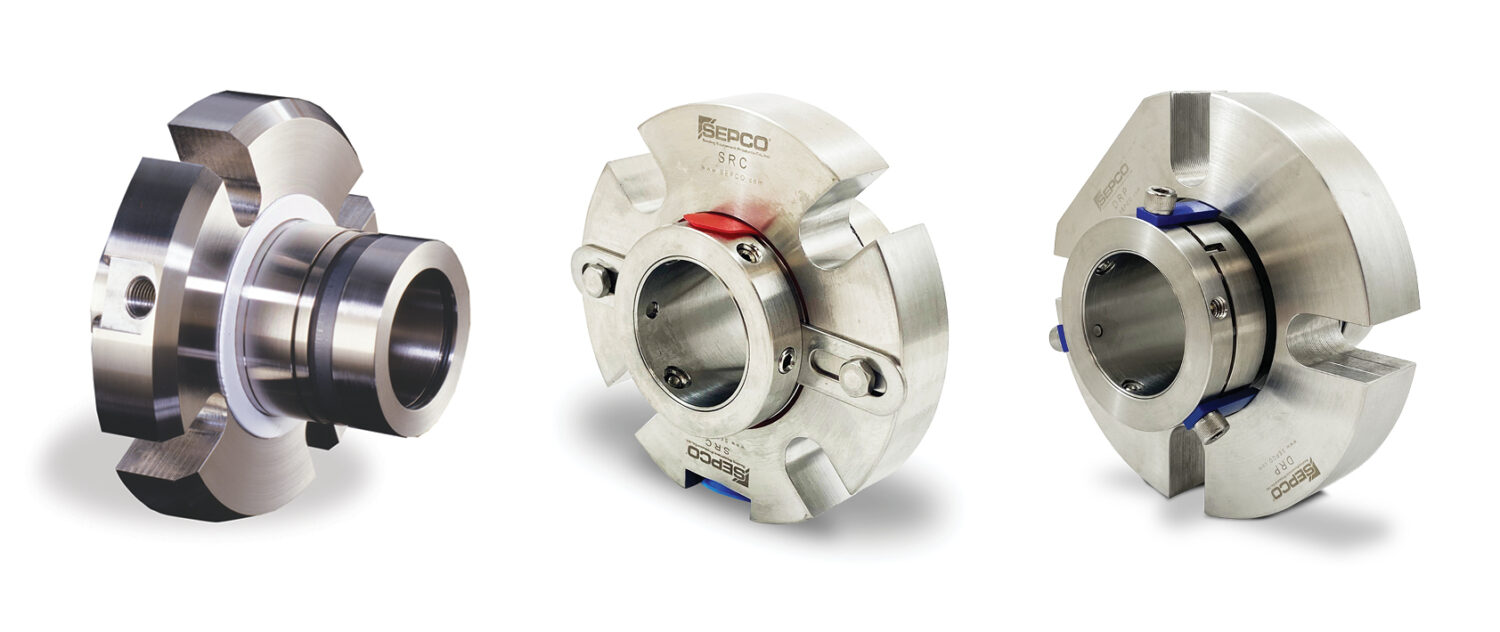

SEAL CONNECTSeal Chamber Pressure and Balance Ratio: What Keeps Mechanical Seal Faces Closed
The short answer
A mechanical seal does not hold pump pressure steady. It reacts to whatever pressure sits in the seal chamber, and the pump sets that pressure: impeller design, wear ring and back vane clearances, the throat bushing and the flush plan.
Two numbers decide whether the seal faces stay closed and cool. Seal chamber pressure sets the hydraulic load. Balance ratio sets how much of that load lands on the faces. Get either one wrong and the seal fails, usually in a way that gets blamed on the seal.
The seal sees chamber pressure, not discharge pressure
The pressure that matters to a seal is the pressure in the seal chamber, at operating conditions. On most centrifugal pumps that number sits somewhere between suction and discharge pressure, and it is rarely what the datasheet assumed.
This is where seal selection most often goes wrong. A seal specified from discharge pressure may be overbuilt. A seal specified from suction pressure on a pump that actually runs its chamber close to discharge can be overloaded from the first start. Neither mistake shows up until the faces come out.
What sets seal chamber pressure
Pump construction sets the baseline. These are patterns, not numbers. The pump OEM or the IOM gives the expected chamber pressure for a specific model, and a gauge confirms it.
| Pump construction | What controls chamber pressure | What the seal usually sees |
|---|---|---|
| End-suction, closed impeller with back wear ring and balance holes | Leakage past the back wear ring, returned to the eye through the balance holes | Close to suction pressure with new rings; climbs as the back ring wears open |
| End-suction, open or semi-open impeller with back pump-out vanes | Back vanes pumping fluid away from the chamber | Between suction and discharge, set largely by vane clearance to the backplate |
| End-suction, no balance holes or back vanes | Pressure developed behind the impeller | Can run close to discharge pressure |
| Single-stage double-suction, between bearings | Each seal chamber communicates with the suction side | Both seals near suction pressure |
| Multistage, between bearings | Balance drum or disk, with a balance line back to suction | Both ends near suction while the balance line is clear; a plugged line loads the balance-end seal |
| Vertical turbine and can pumps | Seal sits at the discharge head | Discharge pressure, unless a throttle bushing and leakoff line bring it down |
Measure it instead of assuming it
Put a gauge on the seal chamber. Most seal glands and many stuffing boxes have a tapped port that is plugged or unused; a gauge there reads chamber pressure directly.
Take the reading at normal operating flow, then at minimum and maximum flow if the process swings. Chamber pressure moves with the operating point, and a seal that is comfortable at best efficiency point can be marginal at minimum flow.
Write the number on the pump record. The next time the seal fails, the first question is whether that number changed.
What changes it in service
Chamber pressure drifts as the pump wears and as people change things around it. The seal that ran three years and then failed twice in a month often saw one of these:
- Back wear ring wear. On a closed impeller with balance holes, an opening back ring sends more flow behind the impeller. Chamber pressure rises toward discharge.
- Back vane clearance. On an impeller with pump-out vanes, wear or an impeller set to the wrong face opens the vane clearance. The vanes lose their effect and chamber pressure rises.
- Plugged balance holes or balance line. Pressure behind the impeller or at the balance end climbs with nothing to relieve it.
- Throat bushing wear or removal. A tight throat bushing holds flush pressure in the chamber. Wear it open, or leave it out at a rebuild, and chamber pressure falls toward suction.
- Flush plan changes. A Plan 11 from discharge raises chamber pressure, especially with a close-clearance throat bushing. A Plan 13 back to suction lowers it. A bypassed or drilled-out orifice changes both.
None of these show on the seal’s paperwork. All of them change the load on the faces.
Balance ratio: how much of that pressure reaches the faces
Balance ratio is the area that chamber pressure pushes on to close the faces, divided by the face contact area. For a seal pressurized at its outside diameter:
B = \frac{D_o^2 - D_b^2}{D_o^2 - D_i^2}D_o and D_i are the face outside and inside diameters. D_b is the balance diameter, where the secondary seal seals against the sleeve or shaft.
The net pressure holding the faces together is approximately:
P_{face} = \Delta P \, (B - k) + P_{spring}ΔP is the pressure difference across the faces, usually chamber pressure minus atmosphere. k is the pressure gradient factor, the share of chamber pressure the fluid film carries back against the faces. For liquids with a roughly linear pressure drop across the face, k is often taken as about 0.5; flashing fluids and gases change it.
An unbalanced seal has B above 1, typically around 1.1 to 1.3. Face load climbs faster than chamber pressure. A balanced seal steps the balance diameter inside the face, usually to a B of about 0.65 to 0.85, so face load climbs more slowly.
Balanced or unbalanced: what goes wrong with each
Take a seal chamber at 150 psi and k of 0.5, ignoring spring load. An unbalanced seal at B = 1.2 carries about 105 psi of net face pressure. A balanced seal at B = 0.75 carries about 38 psi. Same pump, same pressure, nearly three times the heat at the faces.
Too much face load. An unbalanced seal above its pressure limit, or any seal whose chamber pressure has crept up, runs hot. Expect a widened wear track, fast carbon wear, heat checking on the hard face and, in light hydrocarbons and hot water, flashing at the faces. Many manufacturers limit unbalanced seals to roughly 100 psi, lower at high surface speed or in fluids with poor lubricity. The datasheet governs.
Too little face load. Balance too far below k and pressure transients can lift the faces apart. Leakage spikes and solids get between the faces.
Reverse pressure. When the pressure behind the faces exceeds chamber pressure, a seal balanced only one way can open. That happens on suction-lift pumps pulling a vacuum, and on double seals when barrier pressure is lost or set wrong. Those services need a seal balanced in both directions.
Unbalanced is not a lesser design. At low chamber pressure in clean, cool water, an unbalanced seal runs with less leakage and often costs less. Match the balance to the measured chamber pressure, not to habit.
Where vapor margin comes in
Chamber pressure has a second job: keeping the fluid between the faces liquid. Vapor margin is chamber pressure minus the fluid’s vapor pressure at chamber temperature. When it runs out, the film flashes across the faces. The damage, chipped face edges and heat checking, looks like dry running.
Balance ratio and vapor margin pull on each other. Face heat raises the temperature at the faces above bulk chamber temperature, which raises vapor pressure right where it matters. A heavily loaded seal eats its own margin. The usual fixes work on the chamber, not the seal: raise pressure with a Plan 11 and a close-clearance throat bushing, or lower temperature with a Plan 21 or Plan 23 cooler.
Check margin at measured chamber temperature, not design temperature. An infrared reading on a strip of flat black tape on the gland gives an honest number on polished stainless. Compare the result to the minimum margin on the seal datasheet.
Before you blame the seal
When a seal fails early, work through the chamber before ordering the same seal again:
- What is chamber pressure now, at the actual operating point? What was it when the seal last ran well?
- Is the seal’s balance right for that pressure, in both directions?
- Has a wear ring, back vane clearance, balance hole or balance line changed since the last good run?
- Was the throat bushing replaced, bored out or left out at the last rebuild?
- Has anyone changed the flush plan, the orifice or the flush source pressure?
- What is the vapor margin at measured chamber temperature?
- Do the faces show heat checking, chipped edges or a widened wear track? Those point to load or flashing, not to a bad seal.
If the answers don’t add up, SEPCO’s sealing failure analysis looks at the failed seal and the service conditions together.
Frequently asked questions
What is seal chamber pressure? Seal chamber pressure is the fluid pressure in the space around a mechanical seal while the pump runs. It usually falls between suction and discharge pressure and depends on impeller design, internal clearances, the throat bushing and the flush plan.
How do I find seal chamber pressure? Measure it with a gauge on a tapped port in the seal gland or seal chamber, at normal, minimum and maximum flow. The pump manufacturer can give an expected value for a specific model, but a field reading is the reliable number.
What is the balance ratio of a mechanical seal? Balance ratio is the area on which chamber pressure acts to close the seal faces, divided by the face contact area. Unbalanced seals run above 1, typically 1.1 to 1.3. Balanced seals typically run about 0.65 to 0.85.
When do I need a balanced mechanical seal? When chamber pressure is above the unbalanced seal’s rated limit, often around 100 psi and lower at high speed or in poor-lubricity fluids. Balanced seals also help in light hydrocarbons and hot water, where face heat threatens vapor margin. The seal datasheet governs.
Do mechanical seals control pump pressure? No. A mechanical seal contains pressure at the shaft. It does not set or steady pump pressure. The pump sets chamber pressure, and the seal must be selected for it.
Why does my seal fail after a pump rebuild? A rebuild can change chamber pressure without anyone noticing: new or worn wear rings, a different impeller clearance, a missing throat bushing or a changed flush orifice. Measure chamber pressure after every rebuild.
