EIC Mechanical Seal

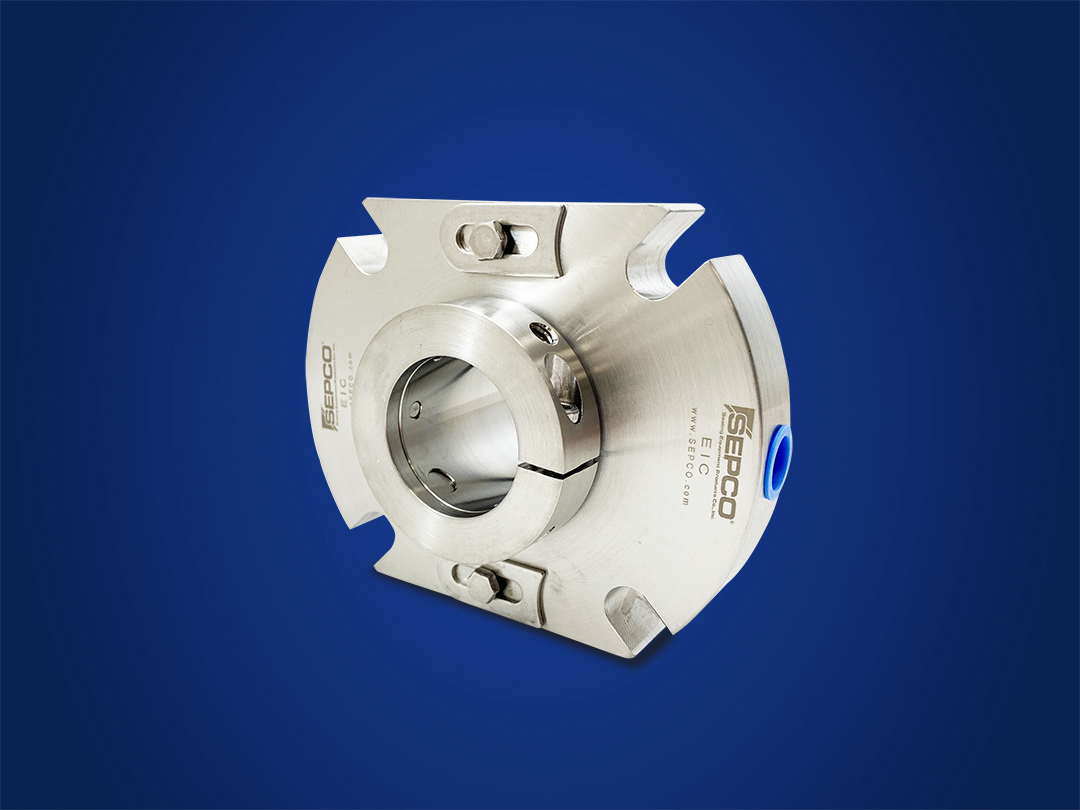

The SEPCO EIC is a single, internal, cartridge-mounted seal. The straight forward design maintains a competitive edge, yet it is rugged and equipped with proven features to provide exceptional reliability and performance. In addition, there are no assembly clips or clearance tabs that must be removed or repositioned so installation is simple and easy compared to most other equivalent single, cartridge-mounted seal designs. The EIC is available with a factory rebuild option.

Product Specifications


  • Standard Metal Parts: 316SS
  • Standard Face Materials: high quality chemical grade carbon-graphite, silicon carbide, or solid nickel-bound tungsten carbide.
  • Standard Elastomers:  Viton, EPR and Aflas. Perfluorinated elastomers available on request.
    Operating Capabilities:
    Pressure: To 350 psig (24 bar g)
    Temperature: -20° to 400° F (-29° to 205° C) Dependent on Materials Selected
    Peripheral Speed: To 5000 fpm (25 m/s)
